 [求助]用2051做超声波测距的源程序和电路图
是一个从别的网站上下的,用2051做超声波测距的源程序和电路图
当中这一句           P1=~buffer ;        //显示数据送P1口
改为             P1= buffer ;        //显示数据送P1口
就能在Keil 中编译通过,但是烧进单片机后,三位数码管显示是一样的. 请问是什么原因?
如果不改这一句,在Keil 中编译就不能通过!!
源程序要怎么样改才能正常???
我的邮箱是: baiyni888@163.com     万分感谢!!!!!!
下面是有问题的源程序:

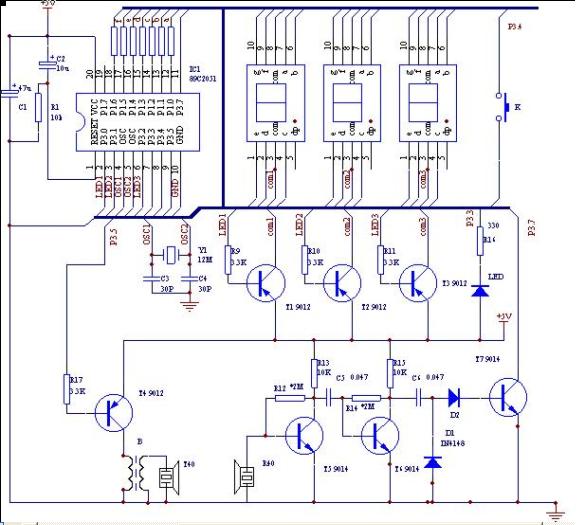

此主题相关图片如下：

#include   <REG2051.H>

#define k1 P3_4
#define csbout    P3_5                  //超声波发送
#define csbint    P3_7                  //超声波接收
#define csbc=0.034
#define bg  P3_3
unsigned char csbds,opto,digit,buffer[3],xm1,xm2,xm0,key,jpjs;//显示标识
unsigned char convert[10]={0x3F,0x06,0x5b,0x4f,0x66,0x6d,0x7d,0x07,0x7f,0x6f};//0~9段码
unsigned int s,t,i, xx,j,sj1,sj2,sj3,mqs,sx1;
bit cl;

void csbcj();
void delay(j);                              //延时函数
void scanLED();                              //显示函数
void timeToBuffer();                  //显示转换函数
void keyscan();
void k1cl();
void k2cl();
void k3cl();
void k4cl();
void offmsd();

void main()                              //主函数
{
     EA=1;                                //开中断
       TMOD=0x11;                        //设定时器0为计数，设定时器1定时
     ET0=1;                              //定时器0中断允许
     ET1=1;                              //定时器1中断允许
     TH0=0x00;
     TL0=0x00;
     TH1=0x9E;
     TL1=0x57;
     csbds=0;
     csbint=1;
     csbout=1;
     cl=0;
     opto=0xff;
     jpjs=0;
     sj1=45;
     sj2=200;
     sj3=400;
     k4cl();
     TR1=1;
     while(1)
       {
           keyscan();
           if(jpjs  <1)
           {
           csbcj();
           if(s>  sj3)
           {
           buffer[2]=0x76;
           buffer[1]=0x76;
           buffer[0]=0x76;
           }
           else if(s  <sj1)
           {
           buffer[2]=0x40;
           buffer[1]=0x40;
           buffer[0]=0x40;
           }
           else timeToBuffer();
           }
           else timeToBuffer();            //将值转换成LED段码
           offmsd();
             scanLED();                  //显示函数
           if(s  <sj2)
           bg=0;
           bg=1;
     }
}

void scanLED()                       //显示功能模块
{
    digit=0x04;
    for( i=0; i  <3; i++)        //3位数显示
    {
        P3=~digit&opto;        //依次显示各位数
        P1=~buffer;        //显示数据送P1口
        delay(20);              //延时处理
        P1=0xff;             //P1口置高电平（关闭）
        if((P3&0x10)==0)      //判断3位是否显示完
           key=0;
        digit>  >  =1;             //循环右移1位
    }
}

void timeToBuffer()                //转换段码功能模块
{
     xm0=s/100;
     xm1=(s-100*xm0)/10;
     xm2=s-100*xm0-10*xm1;
     buffer[2]=convert[xm2];
     buffer[1]=convert[xm1];
     buffer[0]=convert[xm0];
}

void delay(i)
{
    while(--i);
}

void timer1int (void)  interrupt 3  using 2
{
     TH1=0x9E;
     TL1=0x57;
     csbds++;
     if(csbds>  =40)
     {
           csbds=0;
           cl=1;
     }
}

void csbcj()
{
     if(cl==1)
     {
               TR1=0;
           TH0=0x00;
           TL0=0x00;
           i=10;
           while(i--)
           {
                 csbout=!csbout;
           }
           TR0=1;
               i=mqs;                              //盲区
           while(i--)
           {
           }
           i=0;
           while(csbint)
           {
                 i++;
                 if(i>  =2450)                  //上限值
                 csbint=0;
           }
           TR0=0;
           TH1=0x9E;
           TL1=0x57;
           t=TH0;
           t=t*256+TL0;
           s=t*csbc/2;
           TR1=1;
           cl=0;
     }
}

void keyscan()                        //健盘处理函数
{
     xx=0;
     if(k1!=1)                              // 判断开关是否按下
     {
           delay(400);                        //延时去抖动
           if(k1!=1)                              // 判断开关是否按下
           {
           while(!k1)
           {
                 delay(30);
                 xx++;
           }
           if(xx>  2000)
           {
                 jpjs++;
                 if(jpjs>  4)
                 jpjs=0;
           }
           xx=0;
           switch(jpjs)
           {
           case 1: k1cl();break;
           case 2: k2cl();break;
           case 3: k3cl();break;
           case 4: k4cl();break;
           }
           }
     }
}


void k1cl()
{
sj1=sj1+5;
if(sj1>  100)
sj1=30;
s=sj1;
}
void k2cl()
{
sj2=sj2+5;
if(sj2>  500)
sj2=40;
s=sj2;
}

void k3cl()
{
sj3=sj3+10;
if(sj3>  500)
sj3=100;
s=sj3;
}

void k4cl()
{
sx1=sj1-1;
sx1=sx1/csbc;
mqs=sx1/4.5;
}

void offmsd()
{
    if (buffer[0] == 0x3f)
    buffer[0] = 0x00;
}
